Descrizione

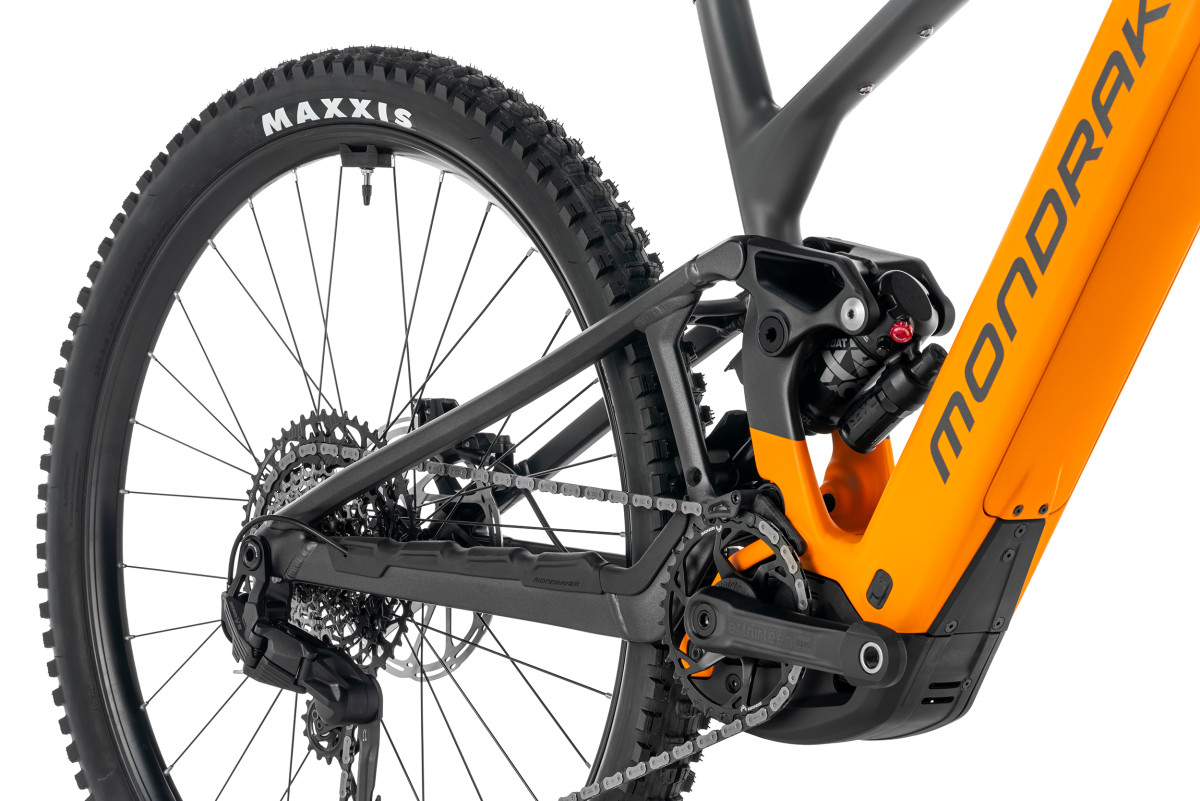

Zero Suspension System
Sistema di sospensioni avanzato che massimizza la trazione e l’efficienza di pedalata, riducendo al minimo le perdite di energia e migliorando il controllo su qualsiasi terreno, anche nelle discese più tecniche.
Forward Geometry
La geometria Forward aumenta la stabilità in discesa grazie al tubo sterzo più lungo e all’angolo più aperto, mentre la posizione del ciclista è ottimizzata per migliorare il controllo e la sicurezza sui percorsi più impegnativi.
Stealth Carbon
Il telaio Stealth Air della Crafty Carbon S è leggero, rigido e resistente, progettato per offrire massime prestazioni, comfort e durata senza compromessi sul design.
Bosch eBike Systems
Motore Bosch Performance Line CX Gen5 con batteria PowerTube da 800 Wh, progettato per offrire assistenza potente e costante, lunga autonomia e integrazione con l’app Bosch eBike Flow per aggiornamenti e personalizzazioni.
Documenti allegati:
SCHEDA TECNICA
Frame
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

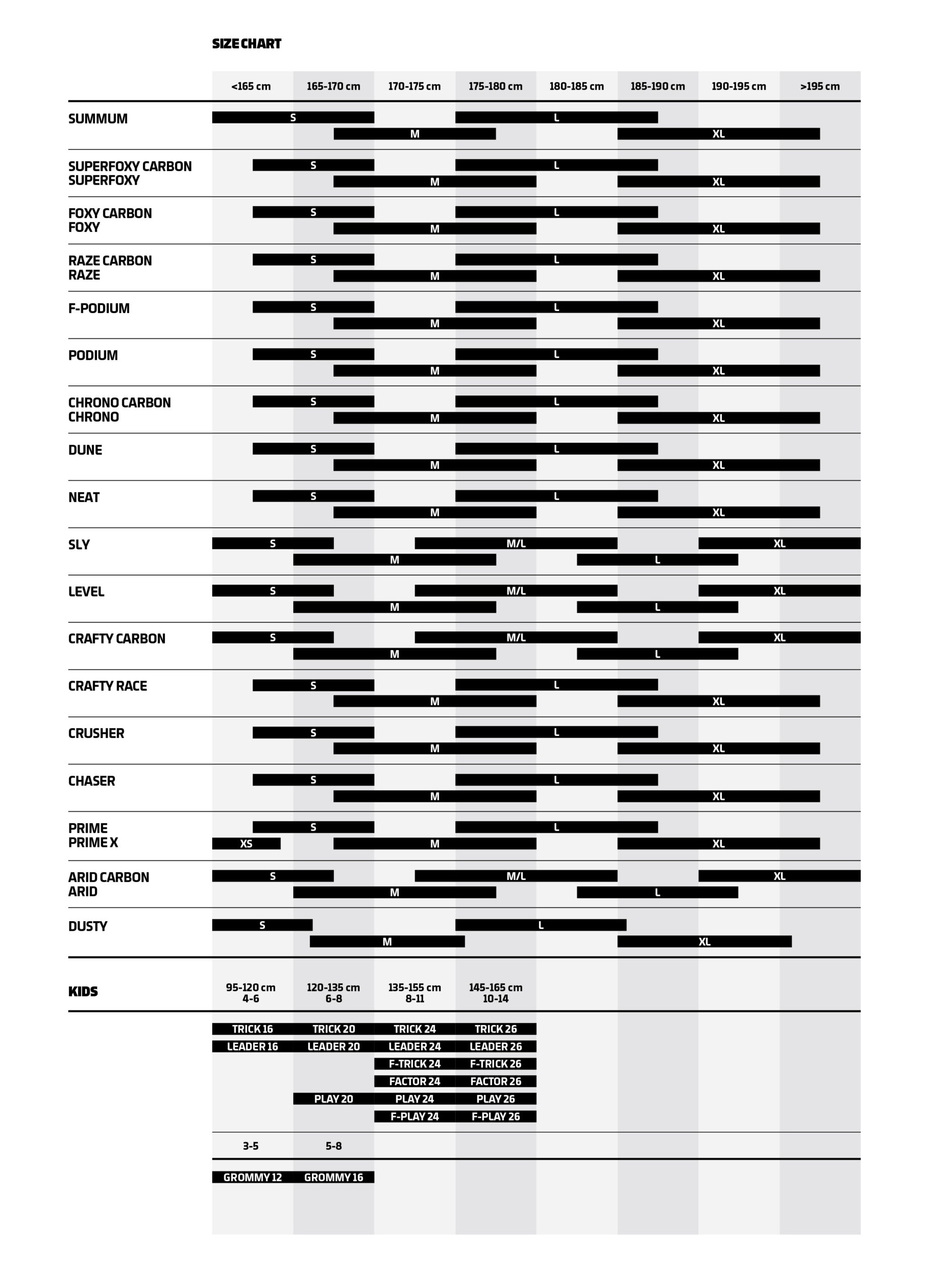

Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
Fork
RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531×200
Saddle
Ergon SM-10
Front brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram DB8 Stealth, tool reach adjust, lever pivot bushings
Rims
WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
WTB Straight gauge spokes & black brass locking nipples
Front hub
WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts
Rear hub
WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub
Front tire
Maxxis Assegai 29×2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 29×2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset
E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings
Sram Eagle 34T T-Type, direct mount, steel, CL55
Chain
Sram 70 T-Type, 12s Flattop, PowerLock
Rear derrailleur
Sram 70 Eagle, T-Type, 12s
Shift levers
Sram Trigger 70, 12s, T-Type Actuation
Casette
Sram XS-1270, 10-52T, 12s
Weight
24,3 kg
Display
Kiox 400C / Bosch Mini Remote
Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
Video di presentazione della famiglia CRAFTY CARBON:
